Frozen Evaporator Coil
A block of ice inside an air handler on a 110-degree day is not a paradox. It is a symptom. Here is the safe thaw procedure, the three causes, and the reason you should not let it happen twice.
- Cooling off, fan on, never chip
- Airflow, refrigerant, or blower
- Why repeat freezes kill compressors
- Same-day diagnosis, flat-rate quote
Schedule today — we’re here 24/7.

Check these first
The order matters here, because the first move protects the most expensive part in the system.- Switch the thermostat from COOL to OFF. Not down. Off. Every minute the compressor runs against an iced coil, it may be pulling liquid refrigerant into itself.
- Set the fan to ON. The blower pushes room air across the ice and thaws it from the inside. This is the whole thawing method. It takes hours, not minutes.
- Do not chip, scrape, or pour hot water on the ice. Evaporator fins are aluminum foil thin. A screwdriver goes straight through a refrigerant tube, and a small freeze becomes a coil replacement.
- Pull the filter. If it is loaded, that is a likely cause and a free one. Put a fresh filter in only after the coil has thawed.
- Open every supply register and clear the returns. Closed doors and blocked grilles starve the coil of the air it needs to stay above freezing.
- Put towels down. An iced coil holds a surprising amount of water. Some of it will miss the drain pan. If the air handler sits in an attic or a closet over finished space, check the secondary drain pan and watch the ceiling below.
- Note where the ice is. Line only, or coil packed solid. It matters to the technician.
What it usually means
A coil freezes when its surface drops below 32 degrees and stays there. That happens for exactly two reasons: not enough warm air is crossing it, or the refrigerant inside it is too cold. Every cause on the list falls into one of those buckets.Airflow
The common bucket. A filter caked with monsoon dust, a coil matted with years of fine debris, a return that was undersized the day the house was built, closed registers, crushed flex duct in the attic, or a blower motor losing speed. Less air across the coil means less heat delivered to the refrigerant, and the refrigerant temperature falls until the condensate on the fins turns to frost. Frost blocks more air. The cycle feeds itself.Refrigerant
Low charge from a leak drops the pressure in the evaporator, and low pressure means low temperature. The coil ices from the point where refrigerant enters, often starting on the copper line outside the cabinet. This is the version people try to fix by topping off, and it comes back, because refrigerant does not evaporate. Our page on refrigerant leak repairs covers how a leak is found and fixed properly.Blower
A failing blower motor, a bad run capacitor on that motor, a slipping belt on an older air handler, or a variable-speed motor commanded to the wrong airflow all produce a coil that freezes with a clean filter and a full charge. The air handler and coil page explains the pieces.Which bucket you are in cannot be determined from a web page. A technician measures static pressure, airflow, and refrigerant pressures and temperatures and reads the answer off the numbers.
Why letting it freeze again is expensive
The compressor is designed to pump vapor. Liquid does not compress. When an evaporator ices over, refrigerant that should have boiled into vapor inside the coil arrives at the compressor still liquid, and the compressor tries to squeeze it anyway. Valves bend. Oil gets washed out of the bearings and carried off with the liquid. One freeze rarely kills a compressor. A summer of thaw-and-refreeze, with the homeowner resetting the thermostat each time, is how a healthy unit ends up with a dead compressor in September. The compressor is the costliest part in the system, and on an older unit its failure usually forces the repair-versus-replace decision. Thawing the coil is free. Diagnosing the cause is a service call. Ignoring it is a new system.Stop and call if
- The coil froze more than once this season.
- Ice returned within a day of a full thaw and a fresh filter.

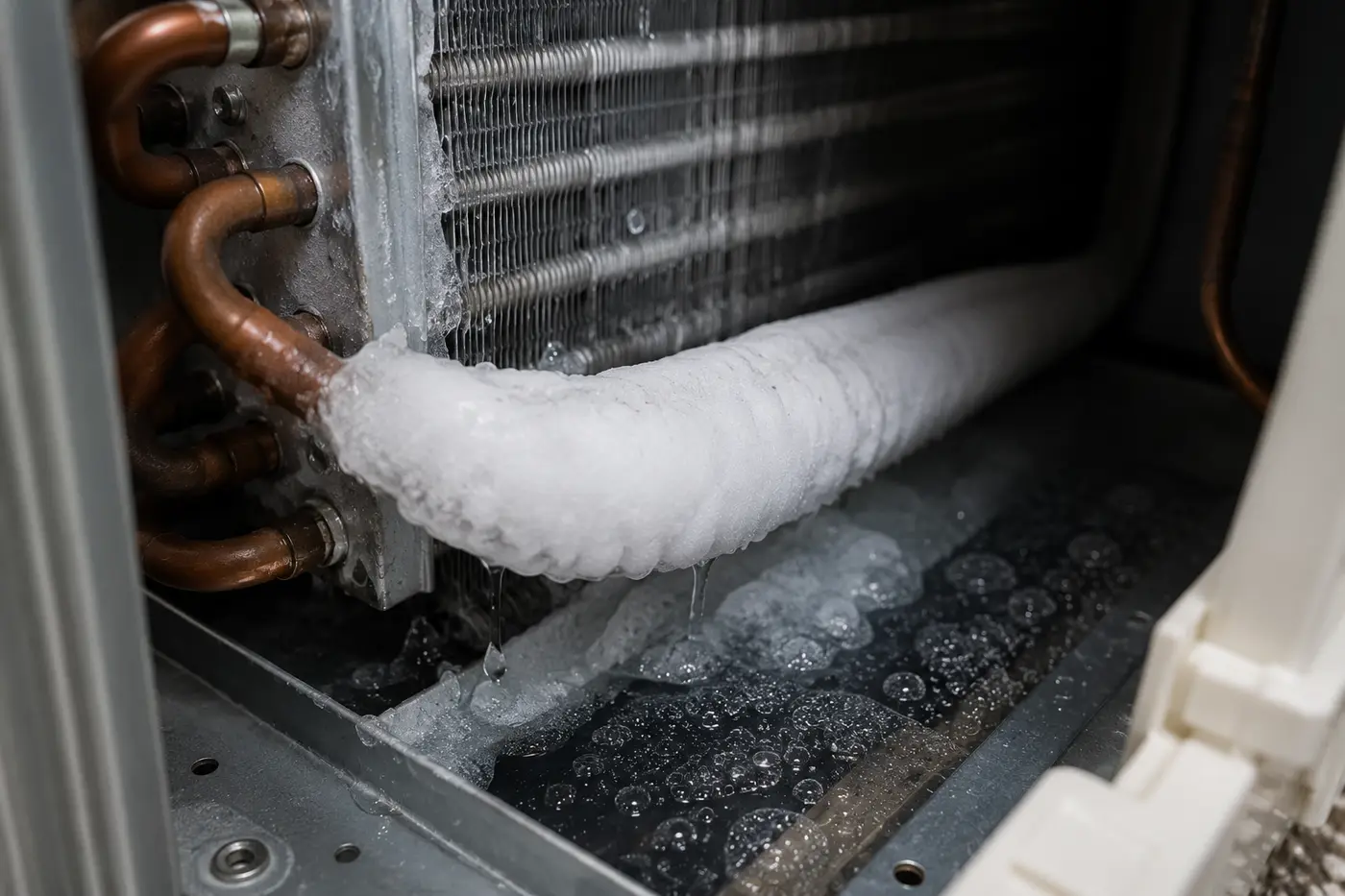

- The ice started on the copper line outside the cabinet rather than deep in the coil.
- You hear a hiss or see oily residue on the refrigerant lines.
- Water is coming through a ceiling or overflowing the pan.
- The blower is noisy, weak, or not running at all while set to ON.
What the thaw looks like
Expect two to six hours with the fan running. Water will drip, then stream, then stop. When the copper line is dry and room temperature to the touch, the coil is clear. Replace the filter, switch back to COOL, and stay near the air handler for the first half hour. If frost reappears, shut it down and leave it down. The cause is not the filter. Our field note on a frozen AC coil follows the diagnostic path on a real call; this page exists to get you through the next six hours safely.Keeping the coil above freezing
Nearly every freeze we see in a Phoenix home traces to a neglected filter, a coil never cleaned, a return too small from day one, or a slow leak nobody looked for. Three of those four are what a maintenance visit is for. The HVAC maintenance guide explains what a proper spring visit includes. The fourth, the return, is a duct problem and is fixed once. If the diagnosis lands on a leaking coil in an old system, you can request an estimate and see what financing on approved credit looks like before deciding anything. On a young system, a freeze is usually a filter, and we will tell you so.Frozen Evaporator Coil: common questions
Straight answers, no runaround. Don’t see yours? Our team is a phone call away, around the clock.
No. Turning it down keeps the compressor running against an iced coil, which is the one scenario that turns a cheap problem into an expensive one. Shut cooling off, run the fan, and let it thaw. If the house is too hot to sleep in safely, that is the night to stay with family or in a hotel, not the night to gamble on the compressor.
The outdoor temperature never reaches the coil. What reaches it is the air in your ducts and the refrigerant inside the tubing. If the refrigerant is too cold, from low airflow or low charge, moisture on the fins freezes regardless of what the patio thermometer says.
It is usually the leading edge of the same problem, and it is a clue. Ice that begins on the small line outside the air handler and works inward tends to point at low refrigerant. Ice concentrated inside the cabinet with a filthy filter points at airflow. Note where you saw it and tell the technician.
If the filter was the cause, yes, and that is the best outcome on this page. If ice returns within a day or two with a fresh filter and open registers, the filter was a contributor, not the cause, and the system needs a proper diagnosis before it runs much longer.
If this is the first freeze and the filter was visibly loaded, run it and watch. If it has frozen before, if the filter was clean, or if you have any reason to suspect a leak, yes. A coil that freezes on a clean filter has a problem that does not go away on its own.
Possibly the compressor, if it ran for hours against solid ice or if this was one freeze among many. A technician can check the compressor's electrical draw and refrigerant temperatures for signs of liquid return. On a single freeze caught early, damage is unlikely. Repeated freezes are a different story.
Cooler nighttime return air and longer, lower-load cycles push the coil temperature closer to freezing, so a system that is marginal on airflow or charge during the day can tip over after dark. It is still the same three causes, and it still needs the same diagnosis.
Almost never on its own. Most freezes are airflow, which is cheap to fix. The exceptions are a leaking evaporator coil on an old system, or a compressor that has been damaged by repeated liquid return. In those cases we will lay out repair and replacement side by side and let the numbers speak.
