Return Air Upgrades

Do the arithmetic on your own house. A four-ton system needs roughly 1,600 CFM of air to work the way it was engineered. A single hallway return grille, sized at the face velocity that keeps it from sounding like a wind tunnel, moves around half that. That is the whole problem in two sentences. A lot of the homes we walk into are trying to breathe through a straw, and the supply side takes the blame for it.

What starved return air actually costs you

Static pressure climbs. Most residential equipment is rated at 0.5 inches of water column total external static, and we routinely measure 0.9 and higher on homes with one undersized return. At that pressure the blower moves less air, the coil gets less heat to absorb, and in July it freezes into a block of ice. The motor works harder and pulls more amps. Vents whistle, doors thump. Compressors and blower motors that should have gone fifteen years quit at nine, and the repair call reads like bad luck when it was really a slow strangling.

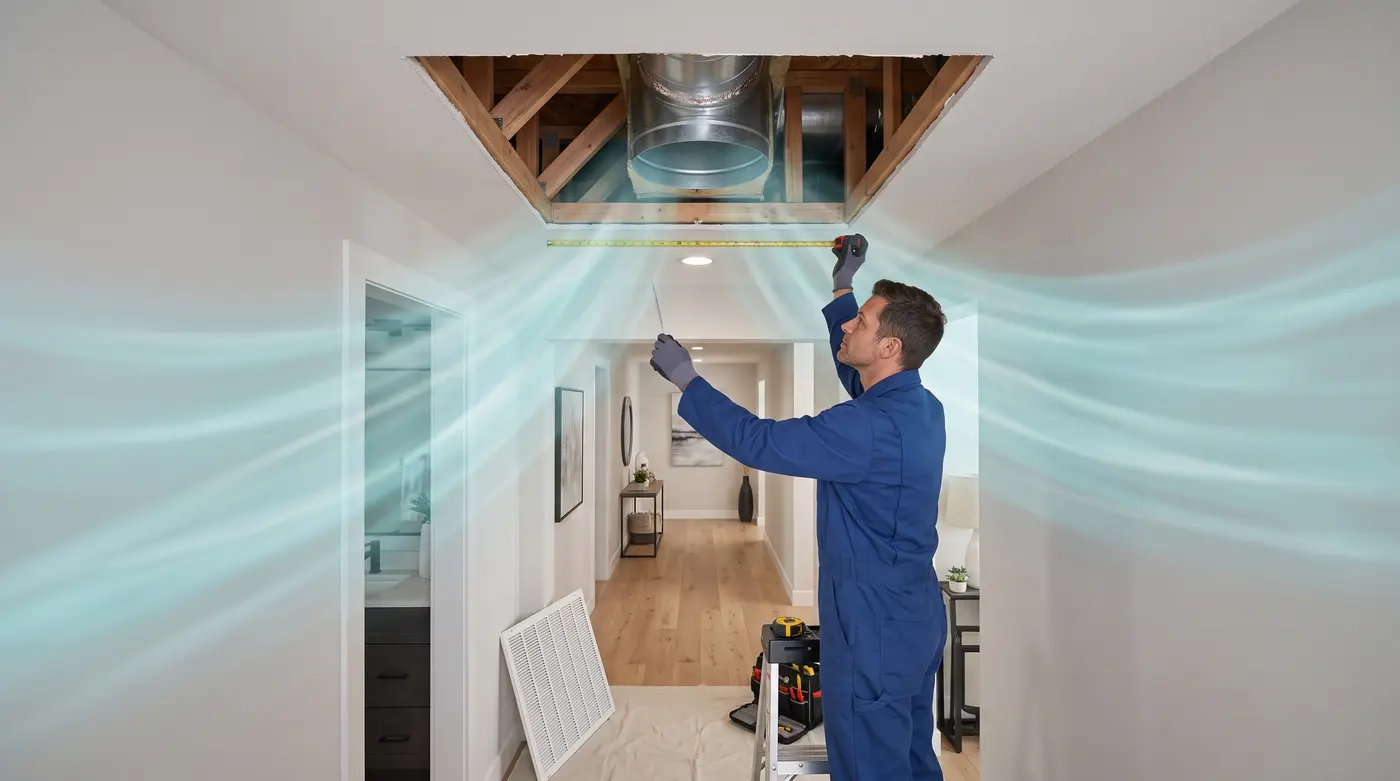

The fixes are unglamorous and cheap next to what they prevent. We add return drops where the framing allows one - a second return in the hallway, a high return in a two-story stairwell where the hot air already piles up. We upsize existing grilles and, just as important, the duct behind them, because a larger grille bolted to the same undersized box buys you almost nothing. For bedrooms that get slept in with the door shut, transfer grilles and jumper ducts give the pressurized room a path back to the return. A closed bedroom door with no return path can hold several pascals of positive pressure, which is enough to push your conditioned air out through the top plates and pull 155-degree attic air in behind it.

Phoenix makes it worse

Haboob season loads filters fast, and a dirty filter on an already-tight return is exactly what tips a marginal system into freezing up during a monsoon week. Plenty of homeowners make it worse with the best intentions by buying the densest one-inch filter on the shelf. If you want serious filtration, the return has to be large enough to carry it, which usually means a four-inch media cabinet instead of choking the system with a high-MERV panel filter built for a different house.

Return work is not a cure-all and we will say so. If the complaint is one room out of eight, air balancing is the cheaper first move. If the complaint is the power bill rather than the noise, duct sealing is the efficiency fix - return upgrades buy you comfort, quiet, and equipment life more than they move the meter. We measure static pressure before and after, quote flat-rate before we start, and back the labor for a year. Call (480) 863-5855 or get an estimate.
