HVAC Zoning

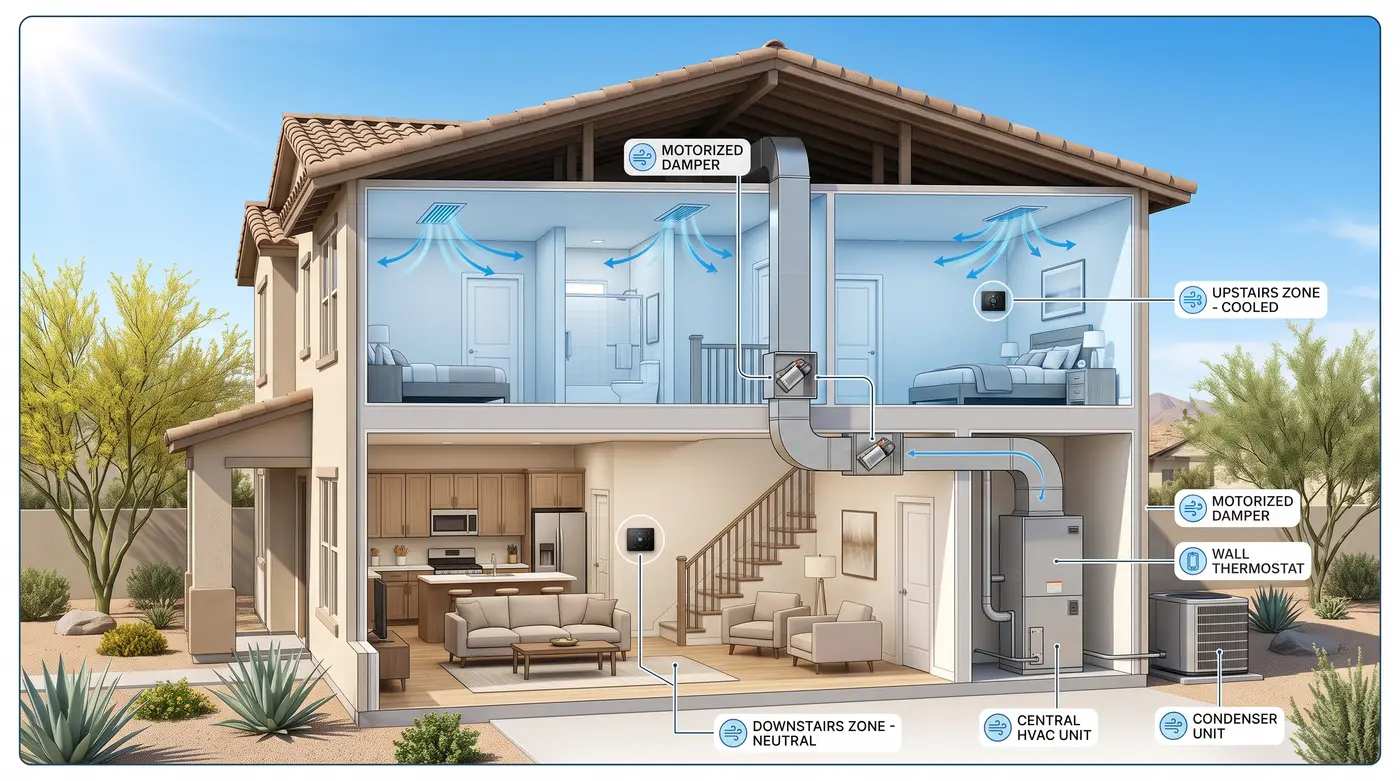

Most Phoenix homes run one thermostat for the whole house. That thermostat sits in a hallway downstairs, reads 75, and shuts the system off while the upstairs bedrooms sit at 84. The equipment did its job. It just did it in the wrong place. Zoning splits your ductwork into separate areas, each with its own thermostat and its own motorized damper. When upstairs calls for cooling, the upstairs dampers open and the downstairs dampers close. Air goes where the demand is. On a two-story block-and-stucco build with a west-facing second floor, that difference is often 6 to 9 degrees.

How a zone system actually works

A control panel sits between your thermostats and your air handler. Each thermostat reports to that panel. The panel decides which dampers open, which close, and what the blower does. Dampers are motorized plates installed in the trunk or in individual branch runs, and they are quiet - most homeowners never hear them move. The tricky part is what happens to the air when half your ducts are closed. A single-speed blower keeps pushing the same volume into a smaller opening, and static pressure climbs. That is where a bypass damper gets used, dumping excess air back into the return. Bypass works, but it recirculates cold air over the coil and can push you toward freezing. We would rather solve it with duct sizing and a smarter blower than with a bypass.

Why variable-speed changes the math

A variable-speed or two-stage system ramps its blower down when only one zone is calling. No bypass needed, no pressure spike, no short cycling. If you are already planning an air conditioner replacement, that is the moment to zone - the equipment and the controls get specified together and the cost of adding zoning drops considerably. Retrofitting zoning onto an older single-stage unit is possible, but the ducts have to be right first. We measure static pressure and airflow with airflow testing before we quote a zone system, because zoning a duct system that is already starved just concentrates the problem.

Zoning is not always the answer. If one room is the problem - a converted garage, an office over the garage, a guest room at the end of a long run - a ductless mini-split is usually cheaper and more effective. It brings its own capacity instead of borrowing from the rest of the house. Zoning redistributes what you already have. If the whole system is undersized on a 115 degree afternoon, moving air around will not create tons you do not own. Sometimes the honest fix is much smaller: air balancing to adjust existing dampers, or a proper return upstairs so the second floor can actually exhaust its hot air.

We install zoning across the Valley, quote flat rates before we touch anything, and back the labor for a full year. If you are not sure zoning is what your house needs, start with a whole-home comfort assessment. We will measure the rooms, the ducts and the load, then tell you plainly whether zoning earns its cost or whether a smaller fix does the same job. Call (480) 863-5855 or request an estimate.
