Split System Replacement: Why Half a System Rarely Pays

What "the whole system" actually means

A split system is two cabinets joined by copper. Outside sits the condenser: compressor, condenser coil, fan. Inside, in an attic, a hall closet or a garage, sits the air handler or the furnace with an evaporator coil on top. The refrigerant line set runs between them; the ductwork runs from the indoor cabinet to every room. When a contractor says full split system replacement, they mean both cabinets and the coil, matched by the manufacturer as a set, plus whatever the connections require. The split system equipment guide explains the parts. This page is about replacing them.

Why replacing half is usually a false economy

The temptation is obvious. The compressor died, the furnace still lights, so replace the outdoor unit and leave the indoor alone. Sometimes that is right: a young indoor unit, a compatible coil already in place, a refrigerant still in production. More often it is not, for reasons that are physical rather than commercial.

• Coil mismatch. A new condenser on an old evaporator coil is an unrated combination. Capacity and efficiency figures apply only to tested matches. You may be paying for an efficiency you will never get.
• Refrigerant. New equipment ships with current refrigerants. An older coil and line set may have run R-22 or a different oil, and mixing is not an option. The refrigerant guide explains why.
• Blower and static pressure. An old blower in a 155-degree attic has been working hard for years. A new condenser expects a specific airflow; if the indoor unit cannot deliver it, the outdoor unit runs outside its design envelope from day one.
• Two attic openings instead of one. The indoor unit fails on its own schedule, usually within the next few summers, and the attic gets opened twice. Twice the labor, twice the drywall dust, twice the scheduling.
• Coverage terms. Manufacturers set their own terms, and mixed systems may be treated differently from matched ones. Read the terms before deciding and ask your bidder to show them.

Bleuwave will replace only the condenser when the indoor unit genuinely justifies it, and we will put the reasoning in writing either way.

What changes the scope

• Indoor location. An attic air handler above a hallway scuttle hole is the hardest case: heat, cramped decking and a cabinet that may not fit back through the opening it came through. A garage or closet furnace is easier, though a closet platform may need rebuilding for a taller cabinet.
• Furnace or air handler. A gas furnace indoors means venting, gas piping and combustion air checks. An air handler with electric strip heat means a heavier circuit. Switching from one to the other is a bigger job than swapping like for like.
• Line set. Reused if the size is right, the run is accessible, and it can be flushed and pressure-tested. Replaced if it is undersized, kinked, buried in a slab or ran an incompatible refrigerant. Buried line sets in older Phoenix homes are a recurring surprise.

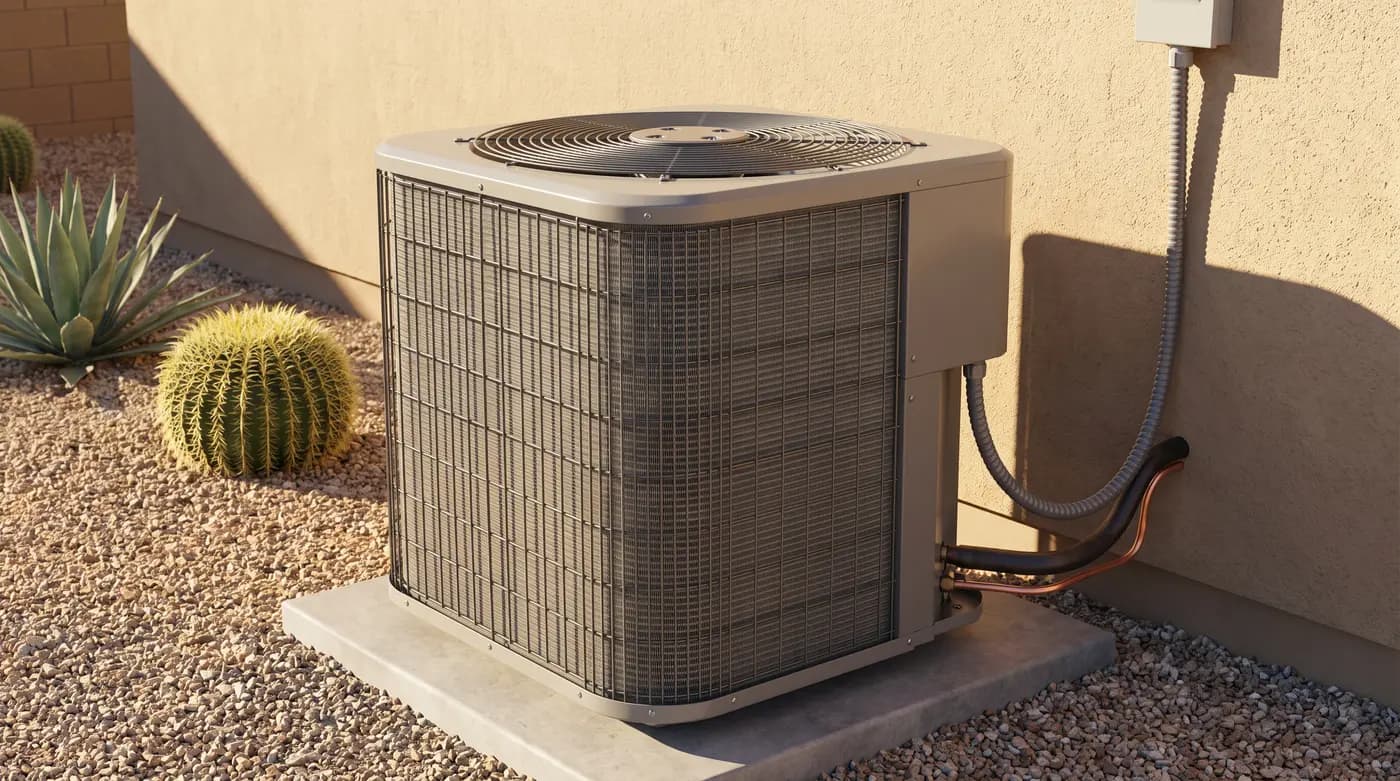

• Condenser pad and clearance. Modern cabinets are wider and taller. A side yard with a block wall thirty inches away may not give the new unit room to breathe, and a west-facing pad that bakes all afternoon deserves a conversation about location.
• Electrical. Disconnect, whip, breaker and wire gauge are matched to the new nameplate, not the old one.
• Condensate. Primary and secondary drains, a float switch and an overflow pan under any attic unit. A clogged drain is the most common way a new attic unit ruins a ceiling.

Plenum and duct connections

The supply plenum sits on the coil; the return plenum feeds the blower. Both were built to the old cabinet's dimensions. A new unit needs new transitions, and those transitions decide whether the system is sealed or leaky for the next fifteen years. It is also the moment to look at whether the return is undersized, which it usually is in a tract home with one grille in the hallway. Return air upgrades are far cheaper with the indoor unit already out. Duct leakage and static pressure get measured at startup. If a bidder does not mention the plenums, the plenums are being ignored.

Questions to ask any bidder

• Are the condenser, coil and indoor unit a manufacturer-matched set, and can you show the rating?
• Is a load calculation included, or is this the same tonnage as before?
• Will the line set be replaced, flushed or reused, and why?
• Does the scope include new plenum transitions, drain pan, float switch and sealing?
• What static pressure do you expect, and what will you do if the ducts cannot deliver it?
• Is the price flat-rate before work begins?

The estimate page explains how Bleuwave builds a written scope. Financing on approved credit is available.

Before you decide

A split system with one failed component and years of life left is a repair. Read the repair-vs-replace guide before committing to anything. If you do replace, keep the match intact: the maintenance guide explains what a matched system needs each spring and fall.

Sizing happens in the house, not online

A web page cannot size a system or diagnose the one you have. Attic access, plenum condition, line set routing and electrical readiness are physical facts. Bleuwave's on-site evaluation measures them, runs the load and produces a flat-rate scope before anything is ordered.
