Capacitor Failure: The Most Common Way a Phoenix AC Quits in July

Check these first

This is the failure we see more than any other between June and September, and it is the one with the most encouraging ending, provided the homeowner does not try to shortcut it. Start here.

• Thermostat. Is it calling for cooling? Cool mode, setpoint below room temperature. If the screen is dark, that is a different page.
• Filter. Not the cause of a capacitor failure, but check it anyway, because you will want airflow when the unit is running again.
• Breaker. Reset it once if it has tripped. A second trip means leave it off.
• Go outside and listen. Stand a few feet from the outdoor unit while the thermostat is calling. Do you hear a hum from inside the cabinet? Is the fan on top turning? A hum with a motionless fan is the signature.
• Look at the fan. Do not put your hand, a stick, or anything else through the grille. If the blades twitch and stop, or turn slowly and never come up to speed, note it.
• Clear the debris. Leaves and dust around the base. Nothing inside the panel.

Then set the thermostat to Off. A compressor trying to start without its capacitor pulls heavy current and heats itself every time it fails.

What it usually means

What the part does

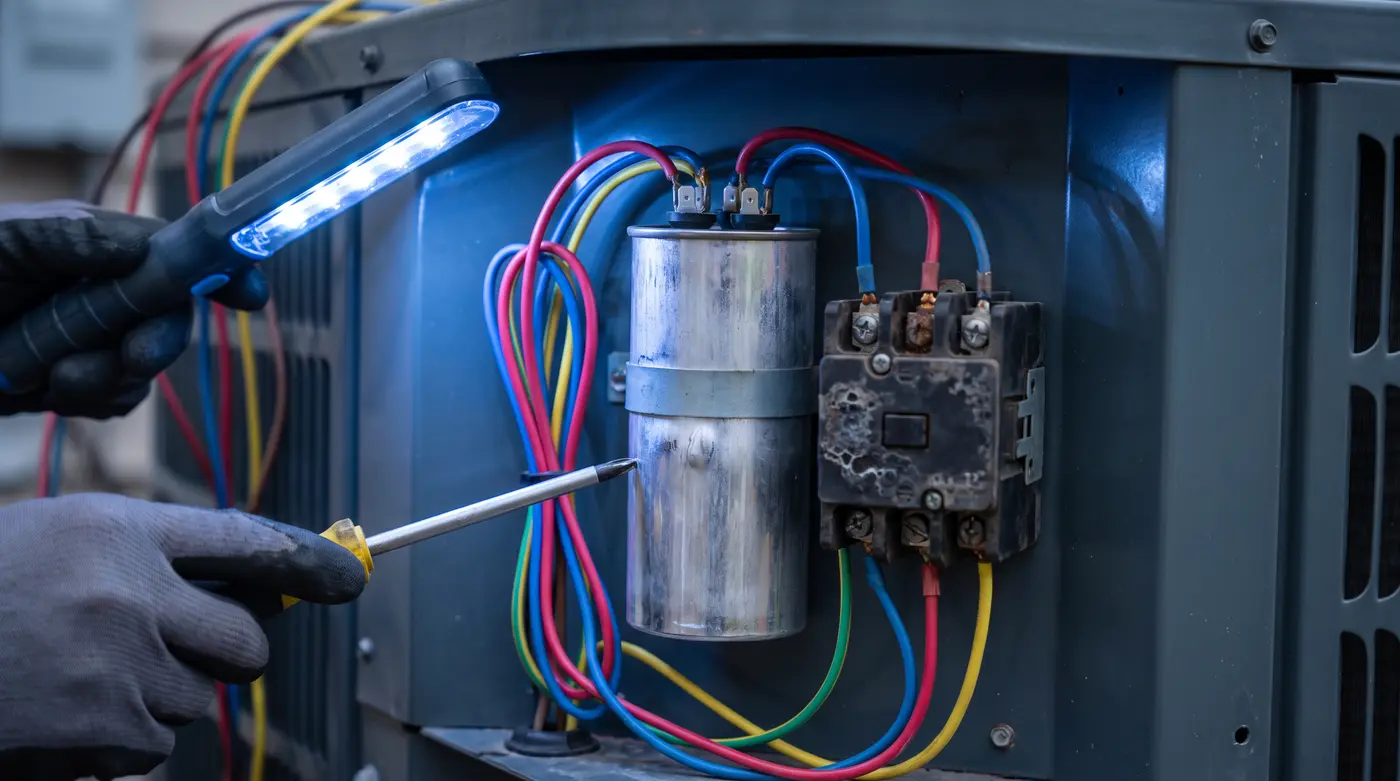

The run capacitor stores an electrical charge and releases it to give the fan motor and compressor the phase shift they need to start and keep turning. Most residential units use one dual capacitor serving both motors, which is why a single failure can stop the fan, the compressor, or both. When it weakens, the motors start hard. When it fails, they hum and do not start at all.

The signs

Humming but not starting. Voltage is arriving, the motor is energized, and nothing is turning. Fan not spinning. Sometimes the compressor still runs, which means the condenser has no airflow and the compressor is now cooking. A bulged or leaking capacitor. A technician will see a domed top or oily residue on the cabinet floor. If you happen to see the top of a capacitor through a vent, do not reach for it. Warm air inside after a stretch of the unit clicking on and off.

Why the heat kills them

A capacitor is rated for a maximum operating temperature, and the inside of a rooftop unit at 4 p.m. in Phoenix approaches or passes it. Heat degrades the dielectric material inside the can, its capacitance drifts below the rating, and the motors it serves draw more current to compensate, which makes more heat. Add a west-facing installation with no shade, a dirty condenser coil, and a compressor that is already hard-starting, and the part that was designed for a decade lasts three summers. This is not a defect; it is physics being applied at 112 degrees. Rooftop package units, which sit in direct sun with no shade at all, see it most. Our page on packaged rooftop units explains why their electrical components age faster than ground-level equipment.

The one rule

A capacitor holds its charge after power is off. That is the entire point of the part. Pulling the disconnect does not drain it, and neither does time, at least not reliably. A technician discharges it with a resistor tool before touching the terminals, wears the right gloves, and confirms the reading before installing the replacement. A homeowner following a video has none of that, and the number of people injured each year by a part they were told was simple is not small. So: do not open the panel, do not touch the capacitor, do not try to jump-start the fan with a stick. The repair is inexpensive relative to the alternatives, and the alternatives include a burned-out compressor and a trip to urgent care.

What a proper repair involves

A technician confirms the fault with a meter rather than by symptom, because a failed capacitor and a failed fan motor can look identical from the yard. The replacement is matched to the rating on the original, not to whatever is on the shelf. The technician then checks the amp draw on both motors and the state of the contactor, since a capacitor that failed early often had help. The whole visit is usually short, and the quote is flat-rate before the panel comes off. Our electrical repairs page covers what else lives in that panel and how each part fails.

Stop and call if

• The unit hums and the fan does not turn. Set the thermostat to Off and call. Leaving it energized keeps the compressor trying.
• The fan runs but the air inside stays warm. That can be the compressor side of the capacitor, and the compressor is now running without help.
• The breaker trips again after a single reset.
• You see a bulged or leaking part inside the unit. Do not touch it.
• Anyone in the home is elderly, an infant, pregnant, or living with a chronic condition and the house is above 85. Get them to a cool space before the repair, not after.

If the capacitor failed early on a unit that is otherwise young, the repair is the end of the story. If it has failed twice on a fourteen-year-old unit with a hard-starting compressor, it is a symptom, and the repair-versus-replace guide is the next page to read. Either way, written estimates and financing on approved credit apply. A web page cannot read a capacitor; a meter can. Spring maintenance includes that reading, which is how most of our members never meet this page in July.
